Details
Description
Coil bolts are designed to be reusable, but they do wear and must be continuously inspected and replaced when wear or damage is noted. A waterproof grease should be applied to the portion of bolt that will be embedded in the concrete. This will facilitate bolt removal from the set concrete.

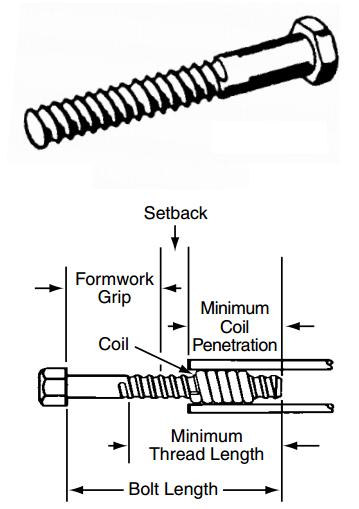

Minimum Coil Penetration Information
When determining the minimum required overall length of coil bolts, you must consider
the following items:
- Formwork grip (including washer thickness).
- Setback of the form tie or insert.
- Minimum coil penetration (applies to all coil products)
| Product Code | Bolt Diameter | Length of bolt |
| 45101 | 1/2" | 2" |
